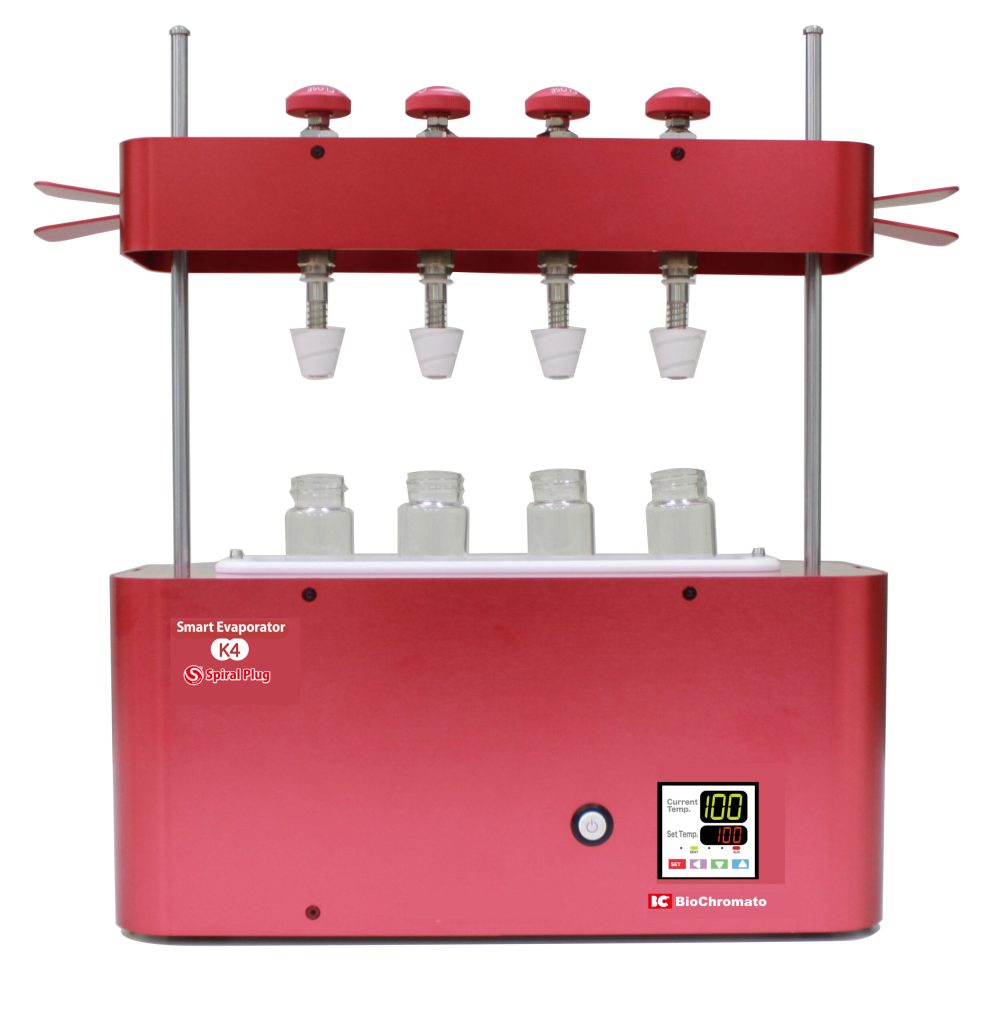

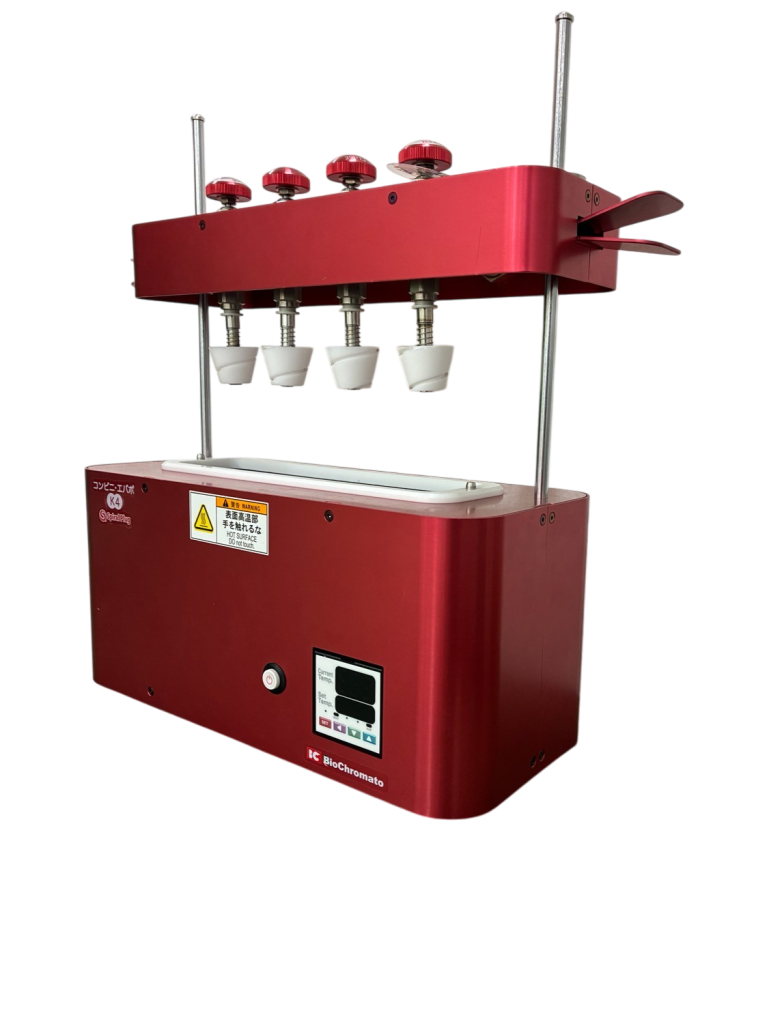

Smart Evaporator K4
The Smart Evaporator K4 has been extensively used in various studies to facilitate efficient and precise sample preparation. This nitrogen-free, gentle evaporation system is effective under near-ambient pressure, minimizing sample loss and thermal degradation, making it ideal for high-boiling solvents such as DMSO, DMF, and NMP.

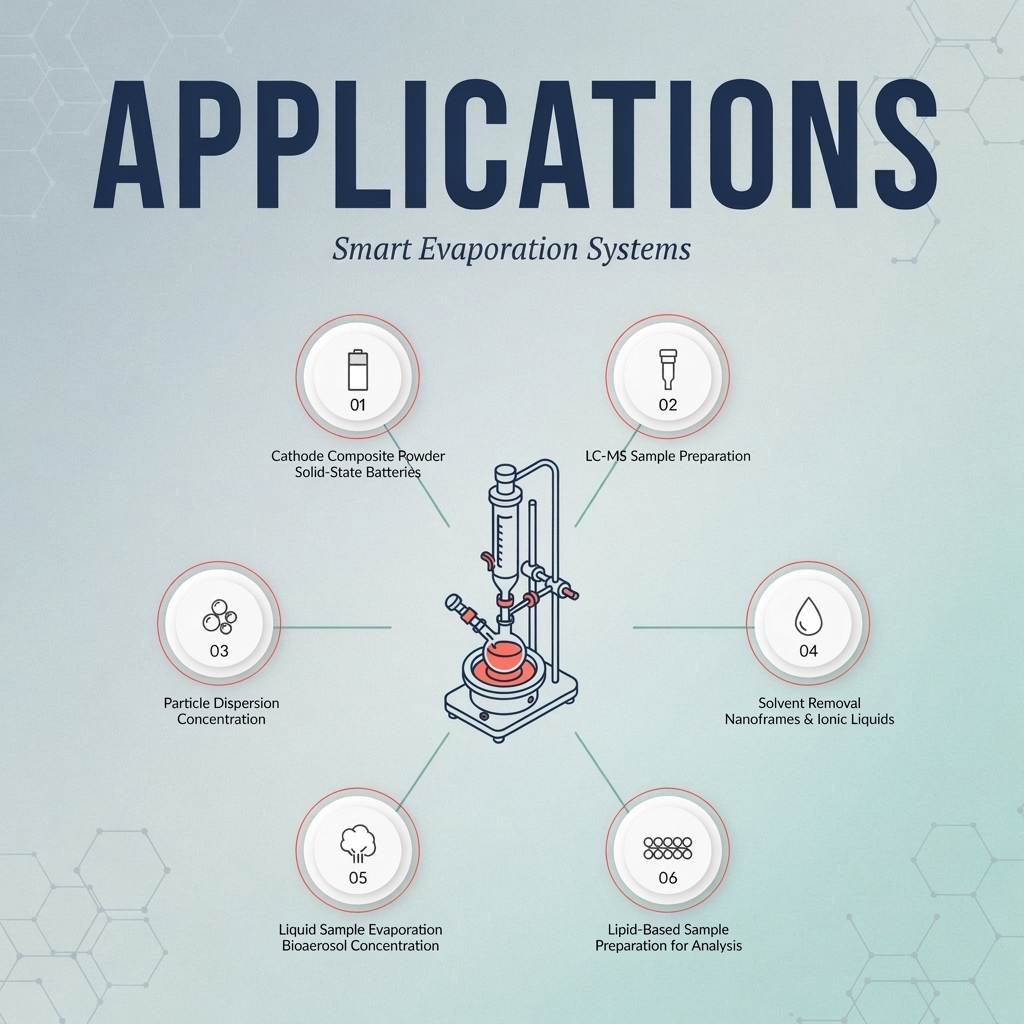

Applications
1. Preparation of cathode composite powder for all-solid-state batteries.
2. Sample preparation for LC-MS analysis of amino acids
3. Concentration of particle dispersions for battery performance.
4. Removal of solvents for the synthesis of nanoframes and ionic liquids.
5. Provides efficient evaporation of liquid samples, concentration of bioaerosols.
6. Preparation of lipid-based samples for various analyses.
Features
- DMSO/DMF/water evaporation with no bumping
- 4 samples at a time for saving time
- Compatible with various containers
- Minimizes the loss by sample transfer
Specifications
| Product Name | Smart Evaporator K4 |
| Heater shape ＆ size | Rectangle shaped, W226mm x D55mm x H58mm |
| Heater temperature range | Room temperature ~ 100℃ |
| Gas Purge | Not Supported |
| Inner mouth diameter of compatible containers | φ4~32mm (Examples of compatible containers) |
| Color | 1 colors (Sun) |
| Size (mm) | W340 x D156 x H414.2 (except protruded parts) (except protruded parts) |
| Weight | 4.8kg |
| Operating environment | Temperature: 10℃~ to 40℃ Humidity: 20~80% |
