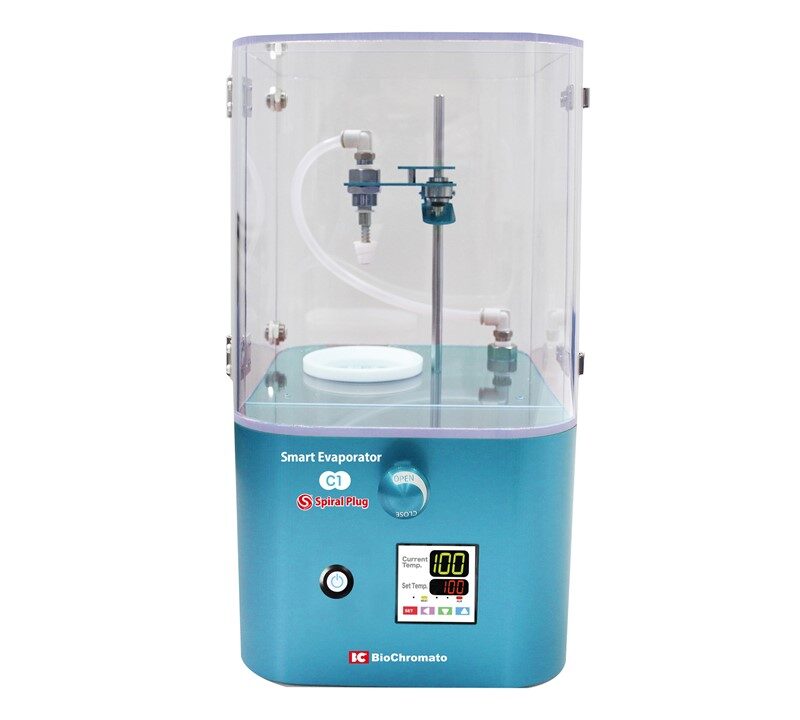

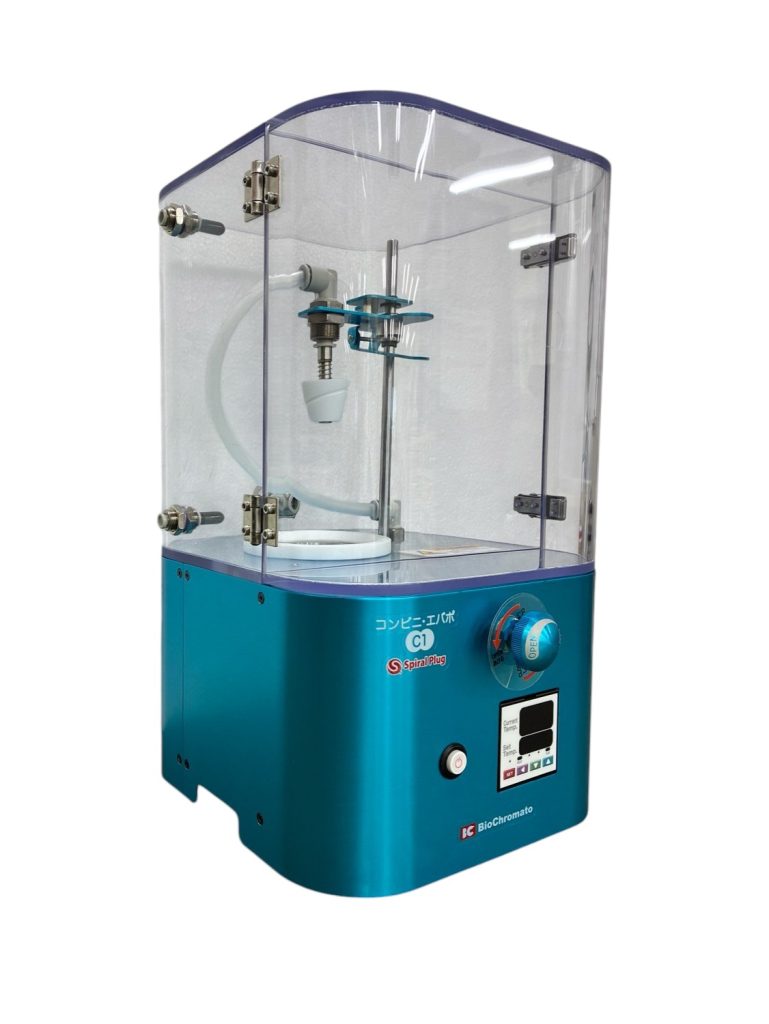

Smart Evaporator C1
The Smart Evaporator C1 has been extensively used in various studies to facilitate efficient and precise sample preparation. This nitrogen-free, gentle evaporation system is effective under near-ambient pressure, minimizing sample loss and thermal degradation, making it ideal for high-boiling solvents such as DMSO, DMF, and NMP.
Applications
1. Preparation of cathode composite powder for all-solid-state batteries.
2. Sample preparation for LC-MS analysis of amino acids
3. Concentration of particle dispersions for battery performance.
4. Removal of solvents for the synthesis of nanoframes and ionic liquids.
5. Provides efficient evaporation of liquid samples, concentration of bioaerosols.
6. Preparation of lipid-based samples for various analyses.
Features
- DMSO/DMF/water evaporation with no bumping
- Compatible with various containers
- Minimizes the loss by sample transfer
- Faster evaporation with inert gas
Specifications
| Product Name | Smart Evaporator C1 |
| Heater shape ＆ size | Circle shaped, φ69mm |
| Heater temperature range | Room temperature ~ 100℃ |
| Gas Purge | Yes, (Tubings and gas not provided) |
| Inner mouth diameter of compatible containers | φ4~32mm (Examples of compatible containers) |
| Color | 4 colors (Sun, Squall, Sky, Grass) |
| Size (mm) | W220 x D227 x H382 (except protruded parts) |
| Weight | 4.3kg |
| Operating environment | Temperature: 10℃~ to 40℃ Humidity: 20~80% |
